Reliable Answer Deduction (RAD)

Know When To And When Not To

CS7641 | Semester Project | Group 33

Introduction

There is a plethora of textual information out there and it has become increasingly difficult to draw insights from the data and find the relevant answers to our questions. Question-answering systems like Machine Reading Comprehension (MRC) systems are effective in retrieving useful information, wherein the model retrieves the answer from given comprehensions instead of the web. A lot of attention has been given to MRC tasks lately. Although existing models achieve reasonably good results, they may still produce unreliable answers when the questions are unanswerable and are computationally heavy. Thus, our aim here is to experiment and present a model which is more reliable.

Problem Definition

Our aim here is to leverage the power of Machine Learning and Natural Language Processing to create a model that deducts the answer when given a passage and also identifies if a question is unanswerable. We plan to develop an ensemble model which successfully accomplishes the task and gives reliable answers to the questions asked from the comprehension. Our proposed approach will be to innovate different modules in our architecture by taking inspiration from state of the art architectures.

Dataset

We are going to use Stanford Question Answering Dataset 2.0 (SQuAD2.0) combines the 100,000 questions in SQuAD1.1 with over 50,000 unanswerable questions. It was written adversarially by crowdworkers such that unanswerable questions look similar to answerable ones. To do well on SQuAD2.0, systems should answer questions when possible and also determine when no answer is supported by the paragraph and abstain from answering.

A sample of raw dataset has been shown below showcasing questions with their actual or plausible answers. The “is_impossible” flag is provided to distinguish between answerable and unanswerable questions and the features for the question vary accordingly.

Sample Dataset Q&A format

Sample Model Output (Source):

Algorithms/Methods:

We would be using a Deep Learning architecture for our Machine Reading Comprehension (MRC) task. It would involve the following sections/tasks - Embedding module, Feature extraction, Context question interaction, Verification module and answer prediction. We would use contextual embeddings from BERT and then experiment with the feature extraction techniques in combination with the attentive context question interaction methods. Span Extractor has been proven to work well as an answer predictor in MRC tasks in existing literature^[7] but we would be experimenting with other methods as well. We would also be exploring unsupervised models which learn via self-supervision.

Potential results and Discussion

We hope to achieve competent scores on the popularly used metrics for this task which are F1 score and EM score. These scores are already used in the SQuaD^[5] to compare various models on the dataset. Additionally, if we are able to develop a competent model, we would also like to focus on keeping the model light in terms of the model size, so that it could be deployed in places where computational resources are limited.

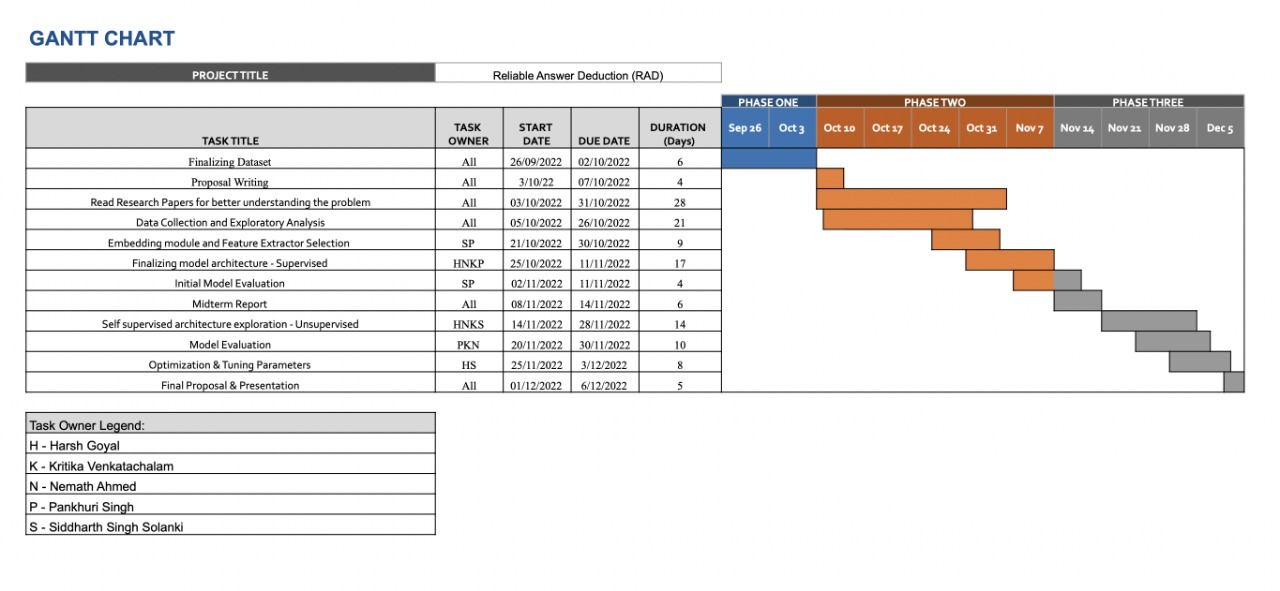

Gantt Chart

Midterm

Dataset Preprocessing & Exploration

When it comes to SQUAD 2.0 dataset, we found it to be mostly reliable and clean. However, we did do some basic cleaning exercise of removing the additional white spaces, conversion to lower case, stripping of unknown ASCII characters and tokenization as per the model requirement. Datapoints which had unreasonably small question length have been removed from both Training and Testing datasets. In order to convert the words in the passage to their root form to be in sync with the answers, we have used Lemmatization technique. Feature engineering was also done to find the end character of the answers given we have been provided with the start character.

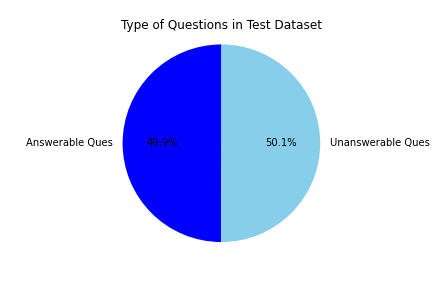

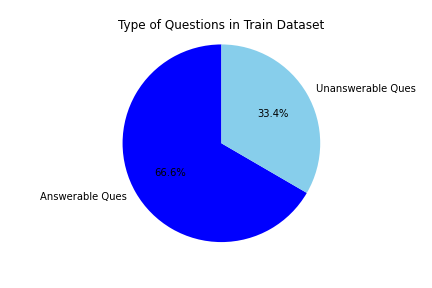

The training dataset of SQUAD 2.0 is unbalanced with two thirds of questions being “Answerable” and the testing dataset is highly balanced with the “Answerable” questions comprising 49.9% of the data as can be seen below.

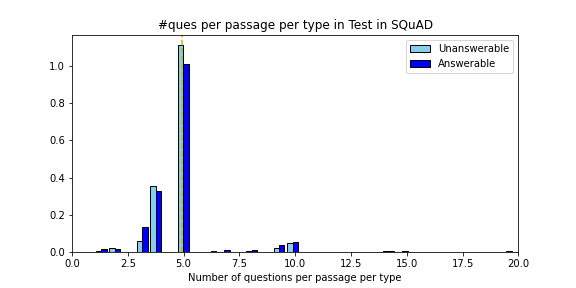

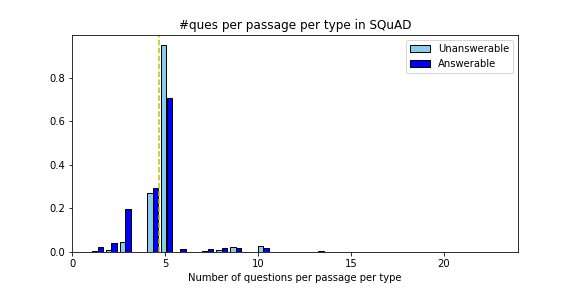

We also did an analysis to understand the distribution of questions per passage across the train and test datasets and concluded that test dataset has an average of 10 questions being asked per context passage and the distributions are shown below:

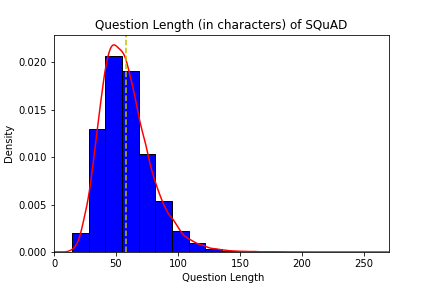

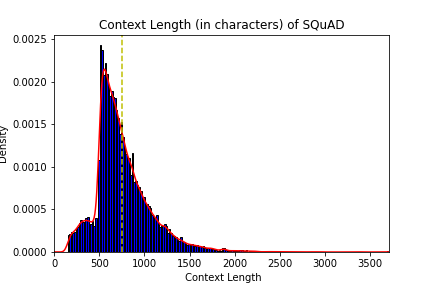

Next, we looked at the lengths of the context, questions and answers to understand the dataset better and identify any outliers

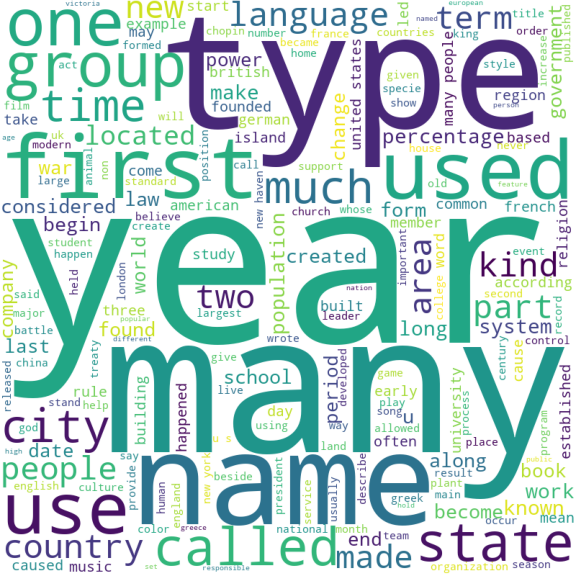

Lastly, we looked at the dominant words in the contexts and the questions by creating a wordcloud after removing the stopwords

Wordcloud for given Contexts	Wordcloud for given Questions

UnSupervised Learning

Generative Pre-trained Transformer 3

GPT-3 is an autoregressive language model which shows strong few shot learning capability on natural language tasks. It has a transformer architecture which is trained using the generative pre-training method. It has the capability to produce human-like answers. Since it can perform new tasks that it hasn’t been trained on, it can be used as an unsupervised method. Hence, we use GPT-3 with engine ‘text-davinci-002’ for our question answering task without providing the answers to it, more specifically, we ask GPT-3 to perform the following tasks to generate an answer. For the first task, we provide the model with only the question and task prompt Give an answer of length less than x words.. For the second task, we provide the model with the question, the context paragraph and the task prompt - Based on the context below give an answer to the question below. The answer should have less than x words. For both the tasks we provide GPT-3 with an answer length based on the dataset answer length to avoid undesirably long answers. On each answer we obtain the similarity by comparing the embeddings of GPT answer and the SQuAD dataset with the ‘text-similarity-davinci-001’ engine as shown in the image shown below. Finally, we compare the answers generated by the model with the answer provided in the dataset by computing L2 similarity score.

GPT-3 Output Analysis:

Under the unsupervised method using GPT-3 we analyzed the statistics on the answers. We compare GPT-3’s performance with the SQuAD dataset. We use a subset of 500 datapoints and use this to derive insights.

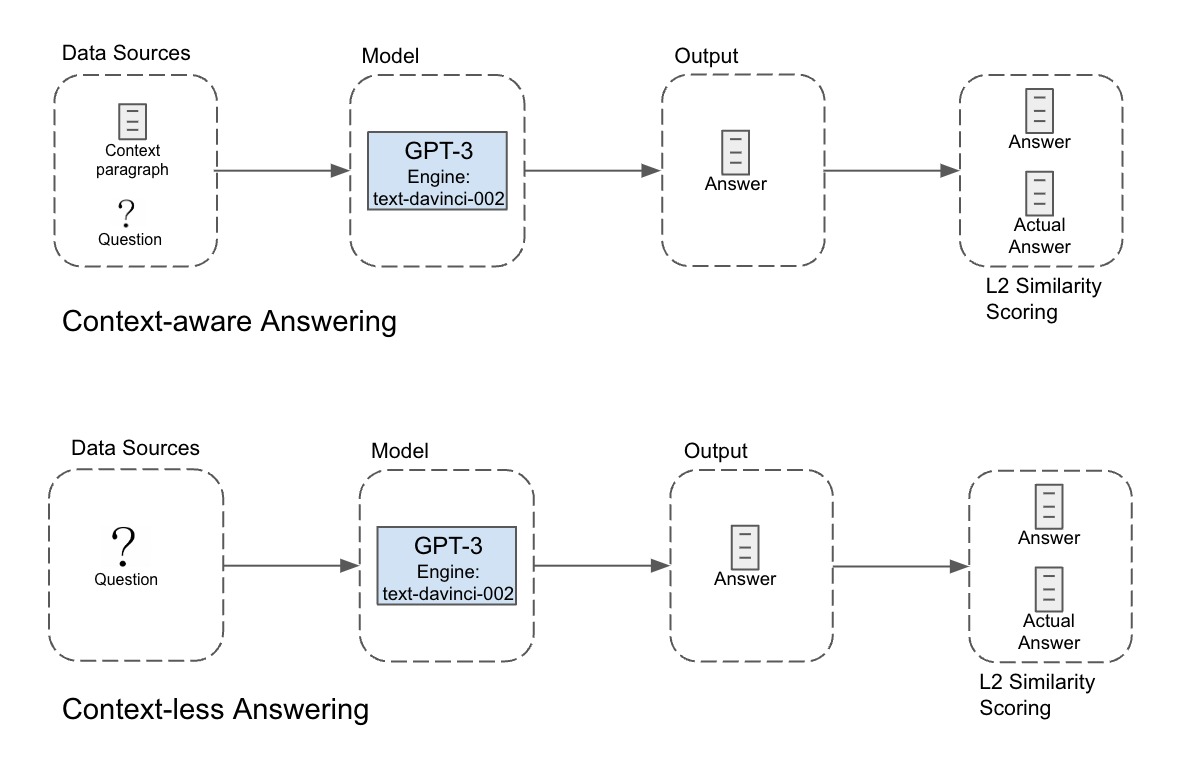

As discussed we assign GPT-3 the task of giving answers to our questions. We do it in branches. Firstly, we don’t give GPT-3 the context to our question. We allow it to use it’s vast knowledge gained by being trained on millions of articles to answer a question. Based on the word length of answers in SQuAD we try asking GPT-3 to limit it’s answer length to avoid unnecessary information leading to score diversion.

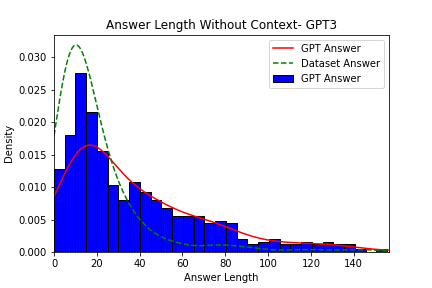

In the plot below, we see that our dataset gives much more concise answers compared to the GPT model. Also we see roughly the GPT answers are much more verbose. This comes from the fact that GPT has knowledge of things which are not necessarily in the context used in the SQuAD dataset. GPT roughly gives an answer of character length of 41 on average.

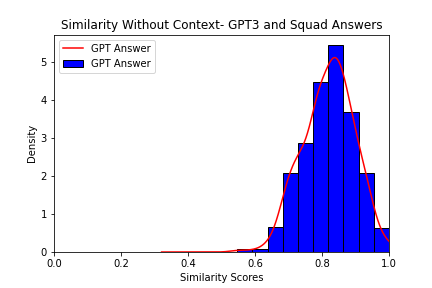

Now checking the similarity between answers from GPT-3 and SQuAD dataset we get a similarity plot as shown below.

We see that the graph is not skewed towards score of 1 meaning the fraction where GPT-3 results overlap with SQuAD considerably is less. This is probably due to the additional information given by GPT3. The average similarity score or accuracy is 81.9%.

Example (No Context):
* Question: When did Beyonce start becoming popular?
* GPT-3 Answer: Beyonce started becoming popular in the early 2000s.
* SQuAD Answer: In the late 1990s.

Now when we give GPT the context along with the question we see interesting insights being derived. Firstly, we that the answer length now starts matching the answers from SQuAD dataset. And there is no divergence in the answer length between SQuAD and GPT-3. This is much more closer to SQuAD dataset. The average answer length is 28.0.

As expected we also see a huge improvement in the similarity scores between GPT-3 answers and SQuAD answers. We see that many questions are now answered with 100% accuracy. The average accuracy is 86.4%. Thus providing context makes answers both concise and precise to SQuAD.

Example (With Context):
* Question: When did Beyonce start becoming popular?
* GPT-3 Answer: In late 1990s.
* SQuAD Answer: In the late 1990s.

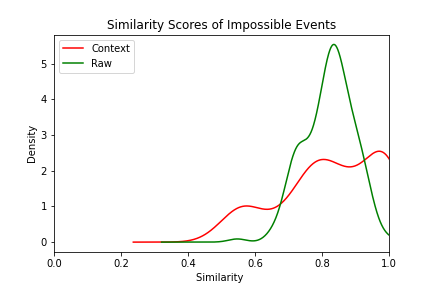

We also verify the plausible answers to which SQuAD thinks it’s improbable to answer the question. From the graph below we see that when we give the context - the questions which are termed unanswerable and have a plausible answer are similar to GPT-3 predictions. On the other hand there is divergence when we don’t give the context. This is because without context GPT-3 takes in all the knowledge and answers all questions.

Scores for the current fine tuned model:

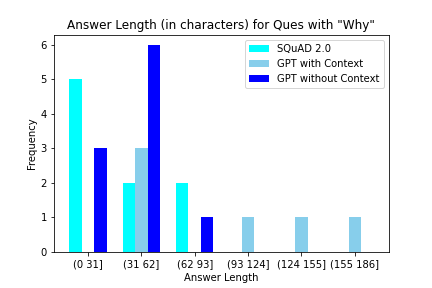

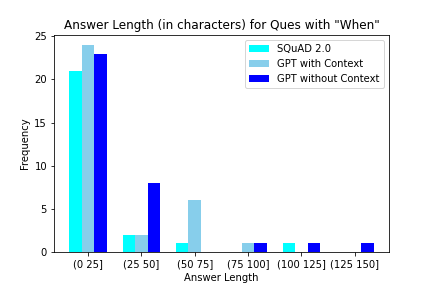

Now we analyze the answers generated by GPT across the various commonly asked questions like “When”, “What”, “How”, and “Why” against the actual answers provided by the SQuAD 2.0 dataset. Throughout majority of questions, we can see that answers given by GPT without any context are higher when compared to the other two categories. GPT with context is also highly in sync with true values for short answers except for the questions containing “Why”. These discrepancies can be attributed to low datapoints as only 10 questions were found to contain “Why” within our sample. Questions with “What” are the most reliable as they span almost 59% of the sample with 295 datapoints

Supervised Learning

Bi-Directional Attention Flow (BiDAF) model:

Introduction

Bi-Directional Attention Flow (BiDAF) is a multistage network which uses bi directional attention flow mechanism to model a query-aware context representation. We use this architecture for our question answering task due it’s effective attention computation at every time step which reduces information loss. Additionally, since the attention computed at every time step is a function of the context paragraph and the question at the current time step, it allows the model to have a memory-less attention mechanism which enables the model to learn the interaction between the given context and the question.

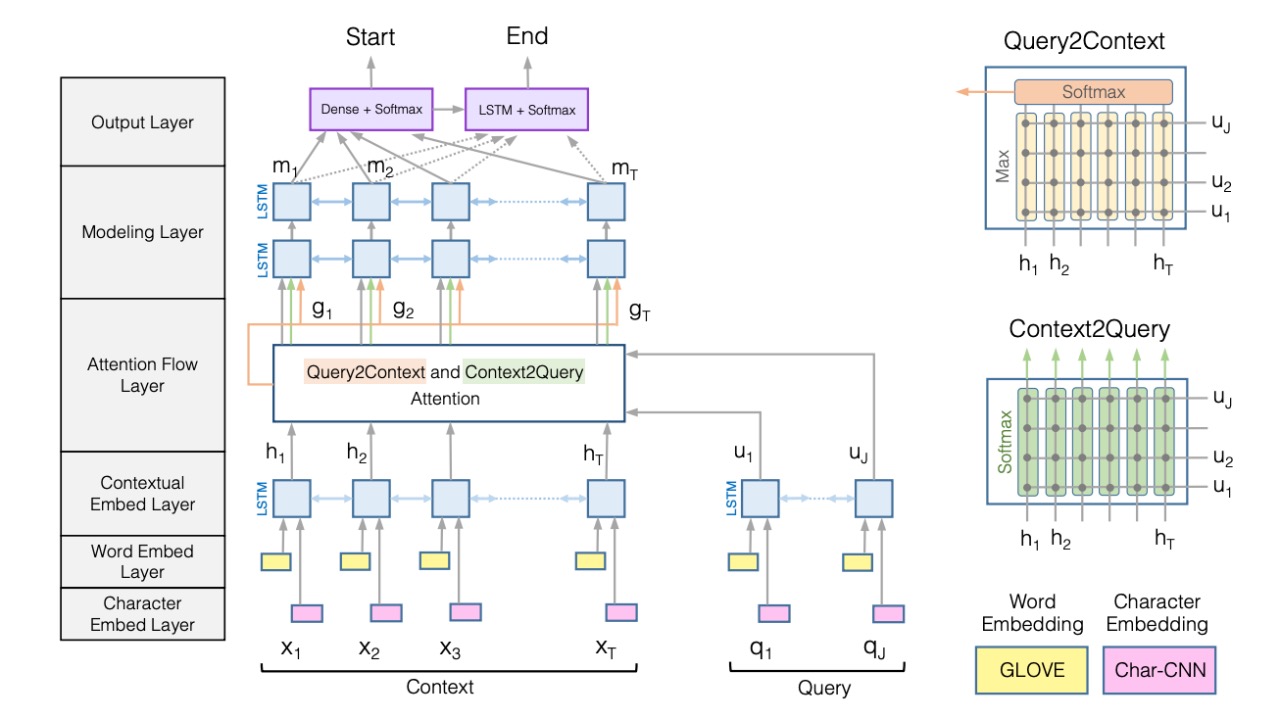

The BiDAF architecture details can be found here^[8]:

Feature Extraction

From the dataset, we consider all context and question pairs as different data samples. In order to extract the features for each sample we perform the following additional steps. First, we tokenize the context and retrieve span (start and end indices) of the word token in the context. Similarly, for all answers given we calculate the end character index and answer spans in the context tokens. For unanswerable questions, the start and end indices are set as -1. Finally, to feed into the model we have the following features: embedding indices of context tokens, embedding indices of all characters in the context tokens, embedding indices of question tokens, embedding indices of all characters in the question tokens, answers start spans’ and answer end spans’. We use pretrained GloVe embeddings to get the corresponding word vectors.

Results

Below are the results and training details for our preliminary fine tuning:

Train/NLL	Dev/NLL

Scores for the current fine tuned model:

Analysis of fine tuning:

The training is highly sensitive to the following parameters:

• Batch size
• Learning rate
• Max answer length

The plots above are for batch size = 64, learning rate = 0.5 and max answer length = 15.

The calculations above are optimally computed using a few experiments until now but these are subject to change once we experiment with the parameters exhaustively. The model is still low relative to its potential on F1 and EM scores of BiDAF models tuned on this dataset. An interesting point to note is that the model has performed relatively better on AvNA metric which basically measures the classification accuracy of the model when only considering its answer (any span predicted) vs. no-answer predictions. This is due to the architecture of BiDAF which allows it to compare the predicted answer versus the no answer hypothesis effectively. One major challenge that we have faced is the limited availability of computing resources. Training process took a lot of time computationally and made effective testing with more combinations of hyperparameter tuning completely infeasible. We have tried reducing the training dataset points to deal with the issue, but it leads to higher loss on dev validation sets as well. We are yet to reach an estimate for the optimal point of this tradeoff.

Further Steps

We would further tune the BiDAF model experimenting with more combinations of hyperparameters. Going ahead we would be experimenting with relevant BERT based models for the QA task and performing comparative studies for the fine tuned models.

Progress Report after Midterm

Supervised Learning

Fine-Tuning Bert:

Introduction

Bidirectional Encoder Representations from Transformers (BERT) employs masked language models to create pre-trained deep bidirectional representations. Thus, reducing the need for many heavily-engineered task-specific architectures. BERT achieves state-of-the-art performance on sentence-level and token-level tasks, outperforming other task specific architectures. BERT Transformer uses bidirectional self-attention. We therefore choose BERT for our question answering task and fine tune it on Squad V2.0.

We built a BERT-based model which returns an answer for a given question and a passage, which will also include the answer of the question. We start with the pretrained BERT-base model “bert-base-uncased” and fine-tuned it multiple times by varying parameters such as number of epochs, learning rate and batch size for the Data Loader.

Feature Extraction

First of all, we read both training and validation datasets and proceed with the following pre-processing steps:

• Filter out all contexts, questions and answers from both the datasets.
• Next, we compute the start and ending index for all the answes in each dataset. For unanswerable questions, the start and end indices are set as -1.
• Tokenize all the contexts and questions filtered out in the step 1 and then convert the start-end positions from previous step to tokens’ start-end positions.
• Then put all the data to DataLoader, so as to split them in “pieces” of provided batch size.

Analysis of fine tuning:

The training on the Squad2.0 dataset is highly sensitive to the following parameters:

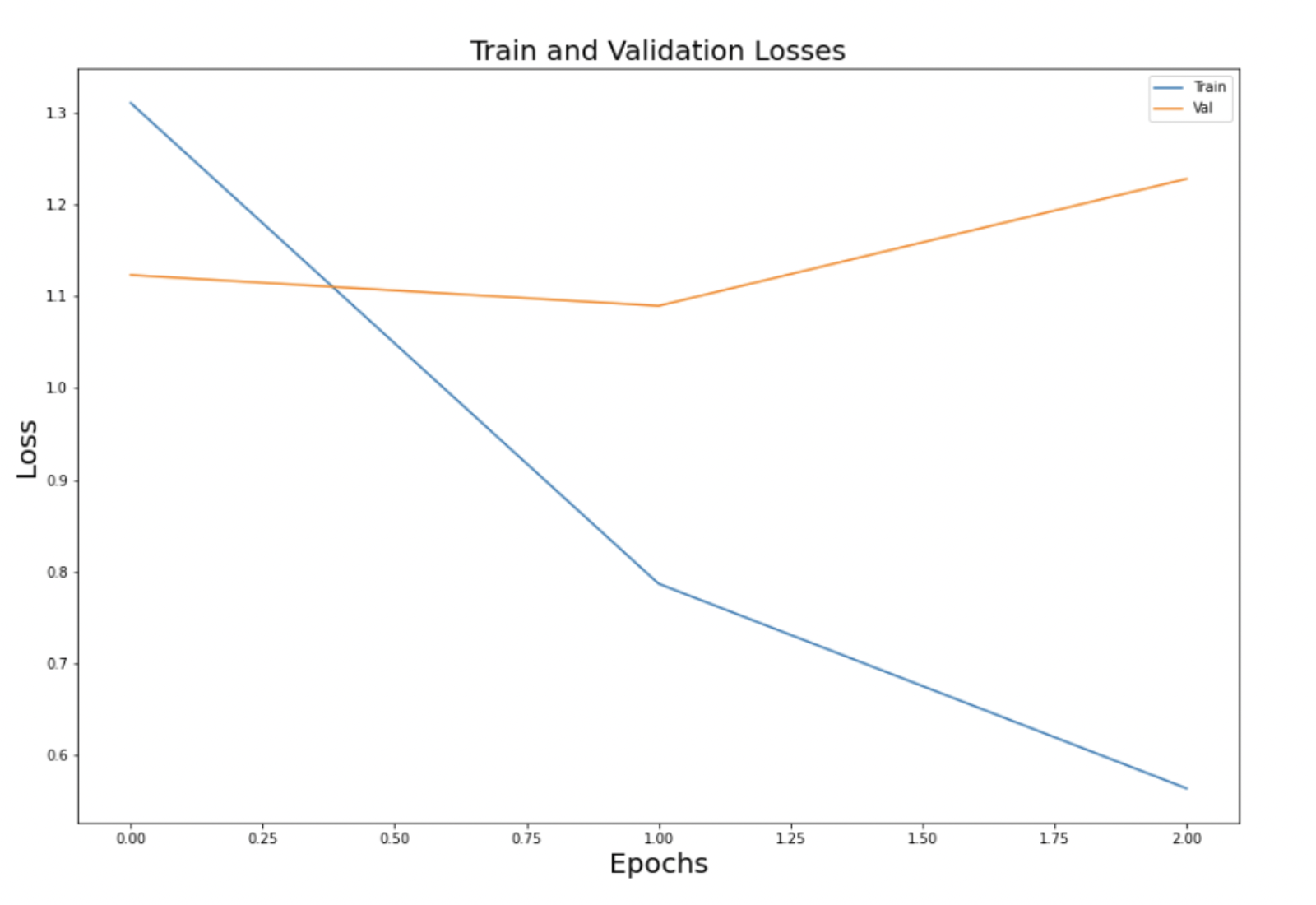

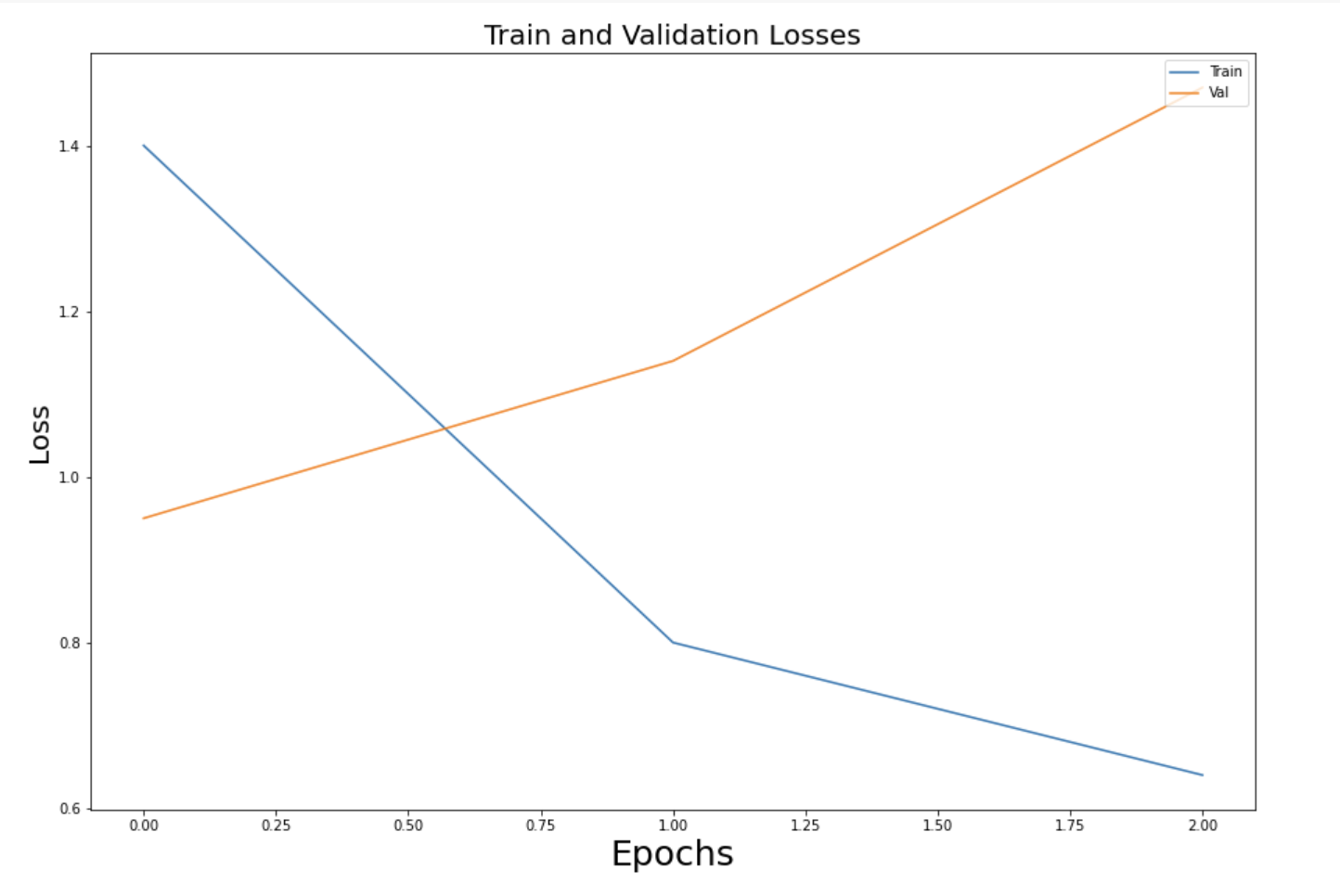

• Number of Epochs: Concerning the number_of_epochs, we began with 2 and realized that overfitting happened from the very first epoch. When we tried to train the model for more number of epochs, overfitting happened after the first epoch itself and the gap between the training and validation loss was getting bigger and bigger with each epoch.

• Batch size: For batch_size, it was impossible to train the model with bigger batch size as we were running out of computation resources. Initially, Google Colab free version crashed with a batch size of 16. Therefore, we moved to Google Colab Pro Premium High-ram GPUs for training with a higher batch size and observed better results.

• Learning rate: For learning_rate, we tried 5e-5 initially but we observed overfitting, but increasing the batch_size improved the performance as clearly visible in the graphs shown (overfitting started from later epoch). Also, by using the LR Scheduler and much smaller learning_rate, we got better results as depicted in the final graph.

We fine tuned our model with couple of parameters:

Case1: Batch_size = 8, Learning_rate = 5e-5 and Number of epochs = 3

Case2: Batch_size = 16, Learning_rate = 5e-5 and Number of epochs = 3

Case3: Batch_size = 16, Learning_rate = 1e-6 and Number of epochs = 4 and Using LR Scheduler for Learning rate decay

Results

As clearly visible from the above shown graphs, we got the best results with 1e-6 learning_rate, 4 epochs, 16 batch_size and LR scheduler. The scores for various fine-tuned models can be found below:

Fine-Tuning BiDAF:

We continued our efforts with BiDAF model after the midterm report. Below are the results of the model training with the most optimal hyperparamters found after performing a couple more experiements. The plots below are for batch size = 32, learning rate = 0.3, num_epochs = 15.

As we can see from the above scores’ graph, the F1 and EM scores obtained using BERT fine-tuning were far better than this BiDAF model.

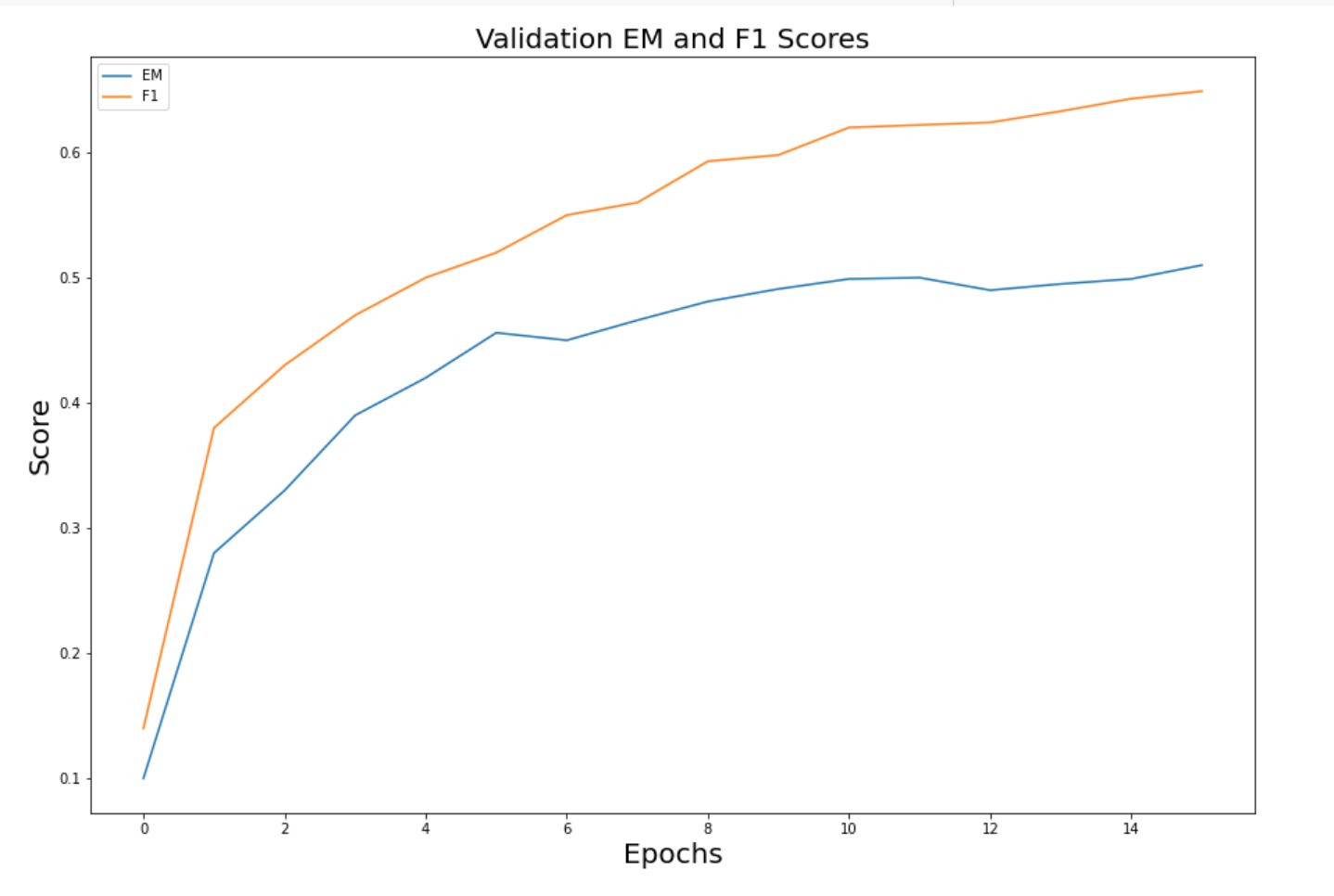

ALBERT:

A Lite BERT (ALBERT) for self - supervised learning of language representations is an extension of the BERT model with modifications to make it a lighter model. It employs two parameter reduction techniques which help lower the memory consumption as well as decrease the training time required. It uses a transformer encoder with GELU nonlinearities like BERT. Three significant design choices that are used in ALBERT are Factorized embedding parameterization, Cross-layer parameter sharing and Inter-sentence coherence loss.

• Factorized embedding parameterization - Embedding parameters are decomposed into two smaller matrices. Instead of projecting the one-hot vectors directly into the hidden space of size H, it is projected into a lower dimensional embedding space, and then projected to the hidden space.
• Cross-layer parameter sharing - the model shares all parameters across layers
• Inter-sentence coherence loss - ALBERT uses a sentence-order prediction (SOP) loss which focuses on modeling inter-sentence coherence. Thus, avoids topic prediction. The SOP loss uses two consecutive segments from the same document. For positive examples, these segments are taken in the same order and for negative examples their order is swapped. This enables the model to learn fine-grained differences.

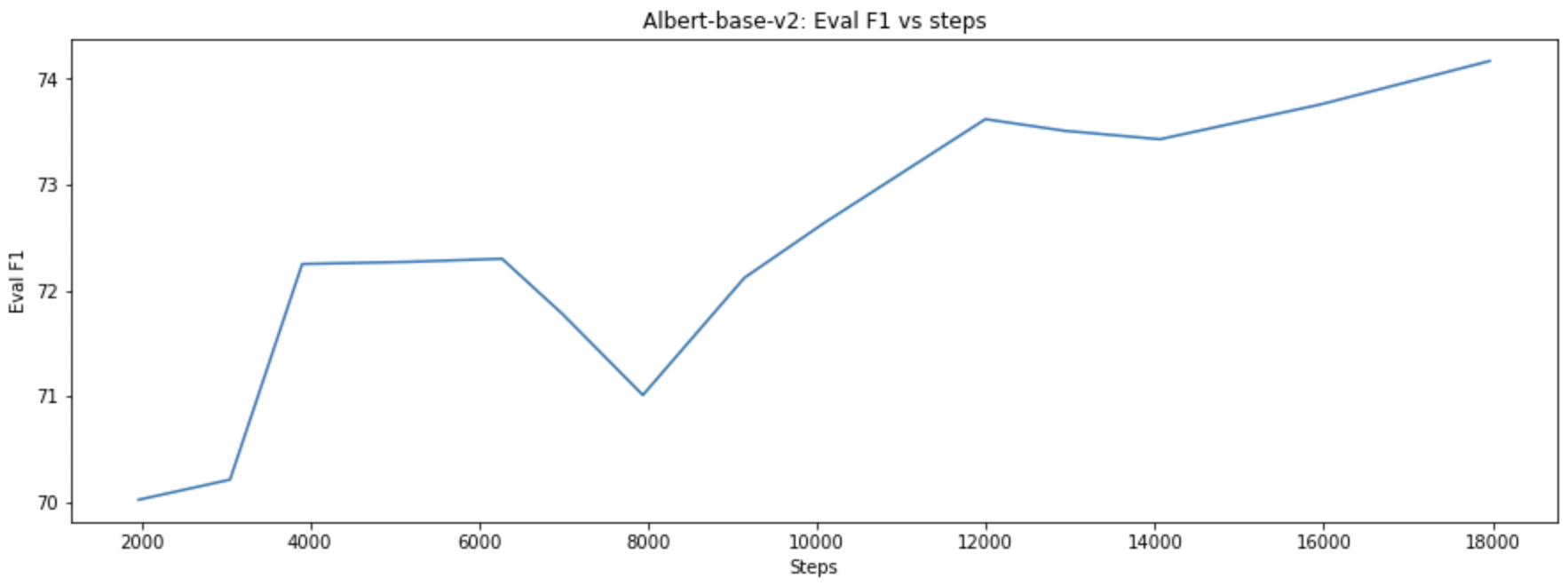

These changes enable ALBERT models to have significantly smaller parameter size as compared to the BERT models. For all the hyperparameter values that we could experiment with, we observed that the model started overfitting from the first few epochs itself. Below are the Eval results for the hyperparameter values of batch size = 8, learning rate = 3e-5, num_epochs = 3

Unsupervised Learning

GPT-3 Further Analysis - BLEU Analysis:

BLEU - BiLingual Evaluation Understudy is a score widely used in NLP to evaluate the similarity between the sentence and the target sentences. It compares the n-gram of the predicted sentence with the n-gram of the target sentence to count the number of matches. The match check is independent of the positions where they occur and more the number of matches, the better the machine translation. A score of 1 indicates a perfect match while a score of 0 indicates a complete mismatch. The calculation of BLEU comprises of 2 main parts:

• N-Gram Overlap: N-Gram basically refers to a set of ‘n’ consecutive words in a sentence. As an example, if for the sentence “I really love football”, we find 1-Gram, then we get ‘I’, ’really’, ‘love’, ‘football’, for 3-Gram we get ‘I really love’, ‘really love football’

  N-Gram Overlap counts the number of times the 1-Grams, 2-Grams, 3-Grams of predicted sentence match their n-gram counterpart in the target sentence acting as a metric for precision. The n is fixed based on the maximal n-gram count occurring in the target sentence

• Brevity Penalty: As the name suggests, this metric penalizes the generated translations that are too short compared to the closest target length with an exponential decay compensating for the missing recall term in the BLEU calculation

The details of the calculation can be seen in the image below:

Why BLEU is bad?

The BLEU metric performs badly when used to evaluate individual sentences. For example, both example sentences get very low BLEU scores even though they capture most of the meaning. Because n-gram statistics for individual sentences are less meaningful, BLEU is by design a corpus-based metric; that is, statistics are accumulated over an entire corpus when computing the score. Note that the BLEU metric defined above cannot be factorized for individual sentences.

Analysis of BLEU Metric:

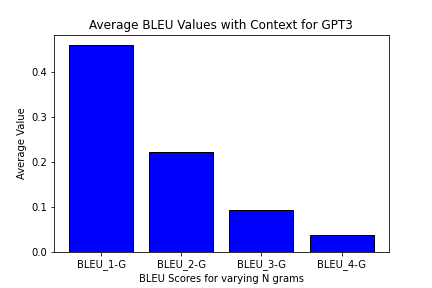

On evaluation for BLEU scores based on n-grams, we see that the trend is similar both across GPT scores with context and without context however there is huge difference in average similarity value. As expected we see that the 1-Gram variant of BLEU performs the best in both cases. When given context to answer a question the average BLEU (1-G) score is around 0.45 while for no context answering the average BLEU (1-G) score is around 0.109. We see that these average scores are much smaller compared to the similarity metric that we originally use with ‘text-similarity-davinci-001’. Because BLEU works on corpus it is not well suited to our case and hence using L2 Score along with ‘text-similarity-davinci-001’ is more preferred to our use case.

Challenge One problem that we encounter while using GPT is the length of answer it outputs. This can also be seen in our example prompt towards the end of the page. We see that GPT inherently answers comprehensively to each question. However, the dataset, SQuAD has answers which are lesser in length. Thus to make a fair comparison we need to limit the answer length that the GPT outputs to a given question. It’s to be noted that the long-length answers that GPT produces are accurate - it’s just that having such comprehensive answers limits our ability to compare it with SQuAD dataset.

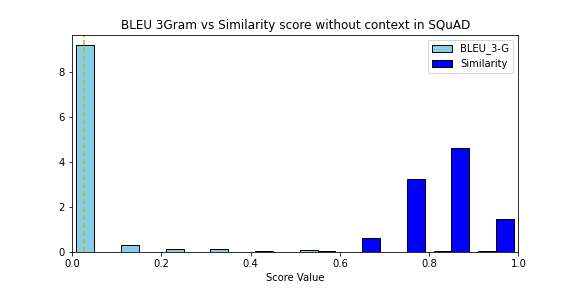

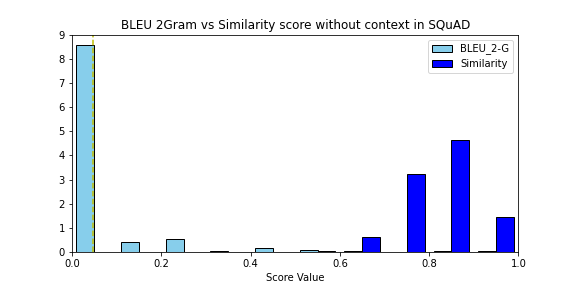

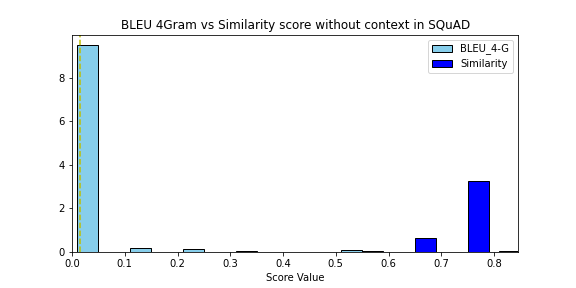

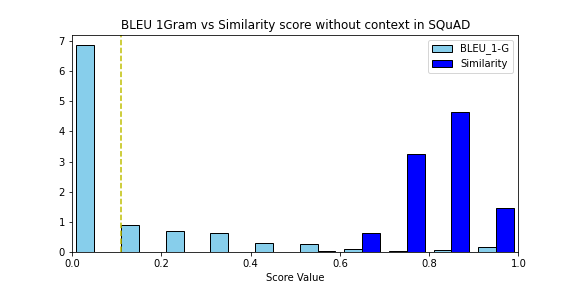

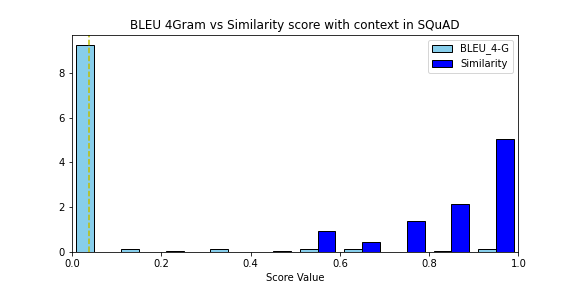

Comparing BLUE scores with similarity scores we see that similarity gives us a better estimate. And it is more skewed towards score 1 whereas BLEU is skewed to score 0 even though the answers are accurate to a human eye and brain. This a proof of how BLEU scores are not the best metric for our dataset. We also see that when we don’t give any context the scores are strongly-skewed to 0. Without context even the similarity scores get slightly skewed which is evident from the plots.

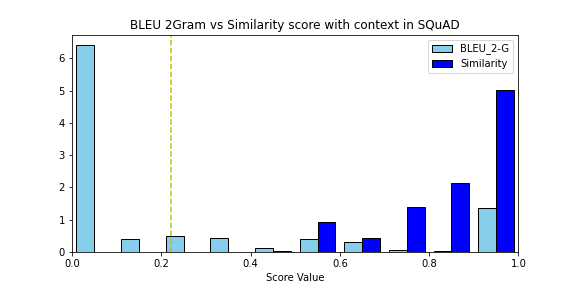

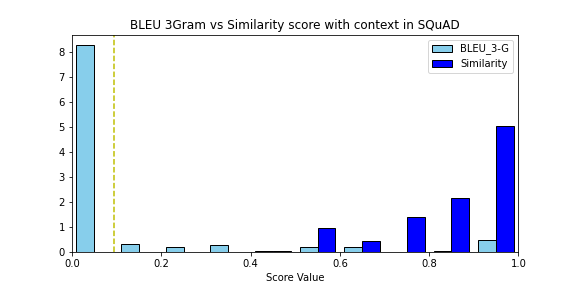

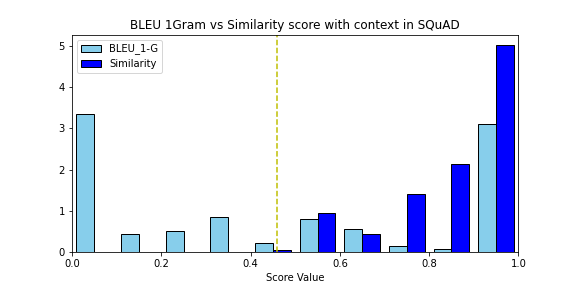

The graph below shows the comparison between different N-grams where N can be 1, 2, 3, 4. We see that as the similarity performance reduces as the value of N increases. And the trend between BLEU and Da-vinci-similarity that we use remains the same.

We fine tune GPT based on the following hyper parameters:

Temperature - It is used to scale the probabilities of a given word being generated. Therefore, a high temperature forces the model to make more original predictions while a smaller one keeps the model from going off topic.

Top p filtering - The model will sort the word probabilities in descending order. Then, it will sum those probabilities up to p while dropping the other words. This means the model only keeps the most relevant word probabilities, but does not only keep the best one, as more than one word can be appropriate given a sequence.

Results and Conclusion

Qualitative Comparative Analysis

Representative Example Prediction for all the explored hyper parameters

All the models we explored seem to do well when the question asked can be easily inferred from the paragraph i.e. the question contains keywords that are exactly present in the answer. However an interesting point to note, which was observed earlier also, is that GPT-III seems to be adding extra contextualizers according to the question asked. This leads to its answers being different from the other models which makes it hard to compare to our models quantitatively. Thus we explicitly specify a limit in the prompt used for quantitative comparisons. Another point to be noted is that the trained models seem to refrain from anything extra or contextual to the answer since the models have been penalized for giving answers other than ground truth of SQuaD; in which the answers are always to the point and not contextualized according to the question.

One of the main objectives of this project was to train models which can reliably declare that no answer is possible based on the given context. In the not answerable questions one category of questions are the ones which clearly cannot be answered. In such questions GPT-III and BERT QA seem to be performing better as is indicative in the question “Who is Michael Jackson” in the example above. BiDAF and AlBERT consistently perform worse in the cases where the questions cannot be answered based on the context. A nuanced subcategory in the questions which contains the same keyword as the context but are still unanswerable and thus quite confusing for the models. In the above table the question “Does Mahdi teach Machine Learning at Georgia tech ?” All the models get confused and give answers where they were not supposed to. GPT-III in particular sometimes gives speculative answers in such cases as is evident in the answer above. We observed that our models are not “truly” reliable in answer deduction but are still able to show some level of reliability in the obviously not answerable category which is still an improvement over the models which do not take the non-answerble questions into account.

Bonus :) (just for fun) In the category of questions which are ambiguous, as is represented by “Is Mahdi really cool?” The models give mixed outputs, sometimes not answerable and sometimes giving a random answer. Though the answers are quite interesting in such cases! While AlBERT thinks that just the name of our prof. is enough to prove his coolness, GPT-3 definitely argues that he is based on speculation. (we agree :) ). While BiDAF thinks that a Bachelor’s degree is enough a reason for him to be cool (again we agree XD) and then there is BERT QA which says lecturers are cool in general (interesting!).

Quantitative Comparison

Below is our comparison of various supervised models’ scores explored in this report:

Thus, we can clearly say that the BERT QA performed better compared to all the other models based on F1 and EM scores. Though we explored GPT-3 in our report, we believe it is not fair to compare it against our supervised models as it is evaluated only on a subset of our actual dataset (500 QA pairs) due to limitations of the API calls of OpenAI.

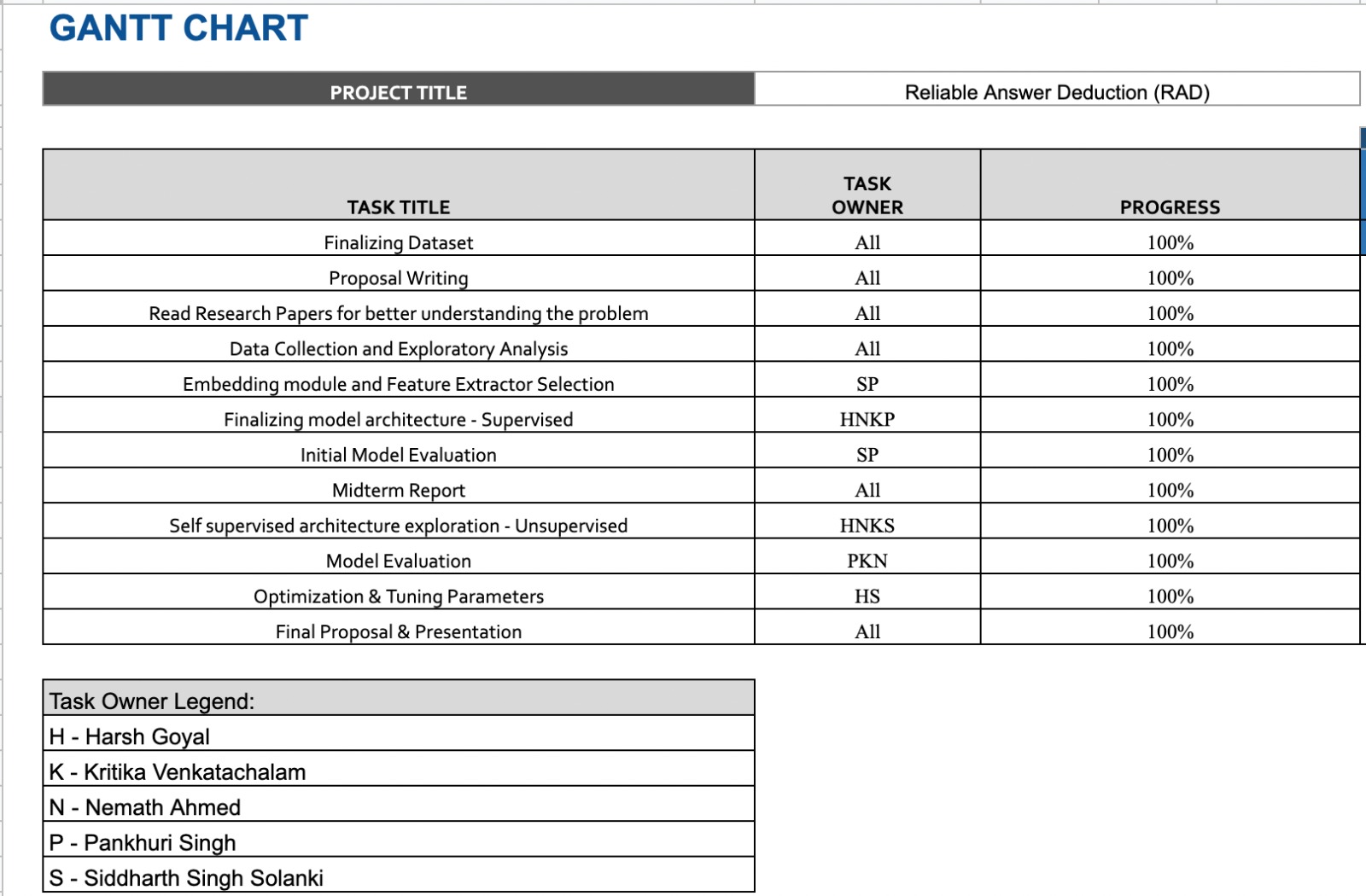

Progress Status

References:

1. Retrospective Reader for Machine Reading Comprehension
2. NEURQURI: NEURAL QUESTION REQUIREMENT INSPECTOR FOR ANSWERABILITY PREDICTION IN MACHINE READING COMPREHENSION
3. Know What You Don’t Know: Unanswerable Questions for SQuAD
4. MobileBERT: a Compact Task-Agnostic BERT for Resource-Limited Devices
5. SQuAD: 100,000+ Questions for Machine Comprehension of Text
6. Bridging the Gap between Language Model and Reading Comprehension: Unsupervised MRC via Self-Supervision
7. Neural Machine Reading Comprehension: Methods and Trends
8. BI-DIRECTIONAL ATTENTION FLOW FOR MACHINE COMPREHENSION

Team

• Harsh Goyal
• Kritika Venkatachalam
• Nemath Ahmed
• Pankhuri Singh
• Siddharth Singh Solanki
